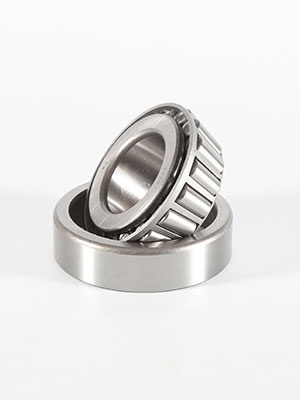

Tapered roller bearing is composed of separable outer ring and inner ring. Moreover, the outer ring and inner ring of the same bearing type can be interchangeable. Tapered roller bearings are widely used because it can bear large radial and axial forces at the same time.
Processing size range | The inner diameter is Φ 15 ~ Φ 50mm, and the outer diameter is Φ 40 ~ Φ 100 |
Accuracy class | Accuracy grade: P0 ~ p6x |
Vibration level | Z1 |
Service temperature | -30~200℃ |
Contact angle | The outer ring and inner ring assembly are interchangeable |

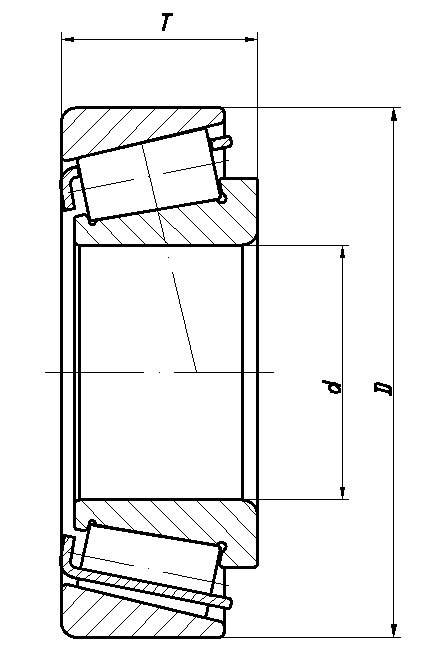

Serial number | model | internal diameter d | external diameter D | Assembly height T |
Rated load |
Limit speed(r/min) | |
dynamic loadCr(KN) | Static loadCor(KN) | ||||||
1 | 30203 | 17 | 40 | 13.25 | 19 | 18.6 | 15000 |
2 | 30204 | 20 | 47 | 15.25 | 32 | 28 | 12000 |
3 | 30205 | 25 | 52 | 16.25 | 35.5 | 33.5 | 10000 |
4 | 30206 | 30 | 62 | 17.25 | 46.5 | 44 | 8000 |
5 | 30207 | 35 | 72 | 18.25 | 58.5 | 56 | 7500 |
6 | 30208 | 40 | 80 | 19.75 | 71 | 68 | 6500 |
7 | 30209 | 45 | 85 | 20.75 | 76.5 | 70.5 | 6000 |
8 | 30210 | 50 | 90 | 21.75 | 86.5 | 91.5 | 5500 |
9 | 32004 | 20 | 42 | 15 | 28 | 27 | 13000 |
10 | 32205 | 25 | 52 | 19.25 | 41.5 | 44 | 10000 |
11 | 32206 | 30 | 62 | 21.25 | 58.5 | 57 | 8000 |
12 | 32207 | 35 | 72 | 24.25 | 76.5 | 78 | 7500 |
13 | 32208 | 40 | 80 | 24.75 | 85 | 86.5 | 6500 |
14 | 32209 | 45 | 85 | 24.75 | 91.5 | 98 | 6000 |
15 | 32210 | 50 | 90 | 24.75 | 95 | 100 | 5500 |
16 | 32304 | 20 | 52 | 22.25 | 51 | 45.5 | 11000 |
17 | 33205 | 25 | 52 | 22 | 54 | 56 | 10000 |
18 | 33206 | 30 | 62 | 25 | 75 | 76.5 | 9000 |
19 | 33207 | 35 | 72 | 28 | 96.5 | 106 | 7500 |
20 | 33208 | 40 | 80 | 32 | 120 | 132 | 6500 |
21 | 33209 | 45 | 85 | 32 | 108 | 143 | 5500 |
22 | 33210 | 50 | 90 | 32 | 114 | 160 | 5000 |
